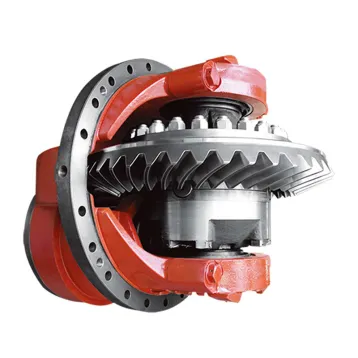

15007642 / 15337441 Differential Assy

Part Number: 15007642
Part Name: 91T Differential Assembly
Weight: 565kg
Size: Φ67*83cm
Brand Name: Terex
Condition:New
OEM Part Number:15007642
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,330
===================================================================
Include :
001 002 00139230 SCREW
002 004 00223441 BOLT
003 001 15007603 PLATE
004 001 15257898 YOKE ASSY
005 001 15007621 .SLEEVE
006 001 15007642 DIFFERENTIAL ASSY
007 004 09114897 .SCREW
008 002 00139191 .SCREW
009 001 15007635 .RETAINER
010 014 00271567 .BOLT
011 ASR 15007647 .SHIM (0.010 IN)
011 ASR 15007646 .SHIM (0.003 IN)
012 001 15000417 .SEAL
013 001 15235836 .CUP
014 001 15235835 .CONE
015 001 15019463 .GEAR-SET
016 001 15235837 .CUP
017 001 15235838 .CONE
018 ASR 15007650 .SHIM (0.010 IN)
018 ASR 15007649 .SHIM (0.003 IN)
019 001 15007634 .HOUSING
020 004 09192618 ..DOWEL-BUSHING
021 004 09216692 ..BOLT
022 ASR 09113457 .LOCKWIRE
023 004 09170517 .BOLT
024 002 09245142 .LOCK
025 002 09245234 .BEARING-ADJUSTER
026 024 09419496 .NUT
028 024 00223775 .BOLT
029 002 09427249 .CUP-BEARING
030 002 09428203 .CONE-BEARING
031 001 15019476 .CASE
032 008 09430296 ..BOLT
035 002 09005581 .WASHER
036 004 09219084 .PIN-DOWEL
037 002 09272352 .GEAR
038 001 09272346 .SPIDER
039 004 09272386 .PINION
041 004 00137393 .BEARING
042 001 09141860 O RING
